DJI Focus Pro Motor

Increase your control response for focus, zoom, and aperture with a 30% faster motor speed. This motor is compatible with 15mm universal rods and has a latency as low as 10 milliseconds when paired with the DJI Focus Pro Hand Unit. It also features a built-in RF antenna for linking with the DJI Focus Pro Hand Unit and can be powered via the USB-C port when used with the DJI Focus Pro Grip.

The motor can be powered through third-party devices. Do not use an extra device to power the DJI Focus Pro Motor when it is already powered (e.g., by the DJI Focus Pro Grip), as this may cause device damage.

DJI RS 4 Pro can be used with up to two motors simultaneously, while DJI RS 4 only supports one motor.

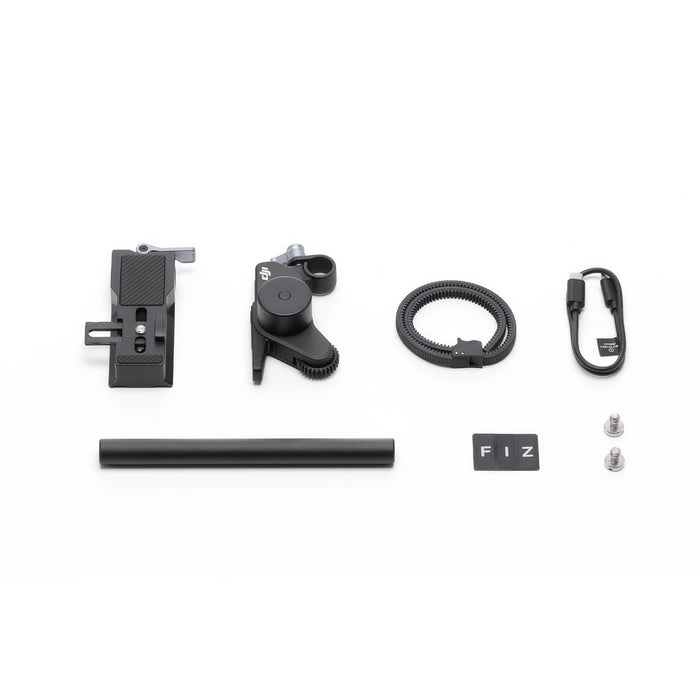

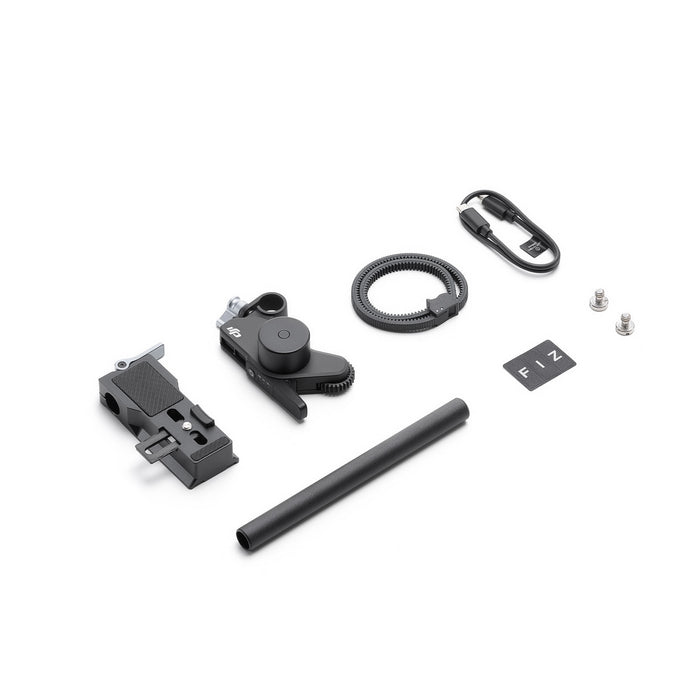

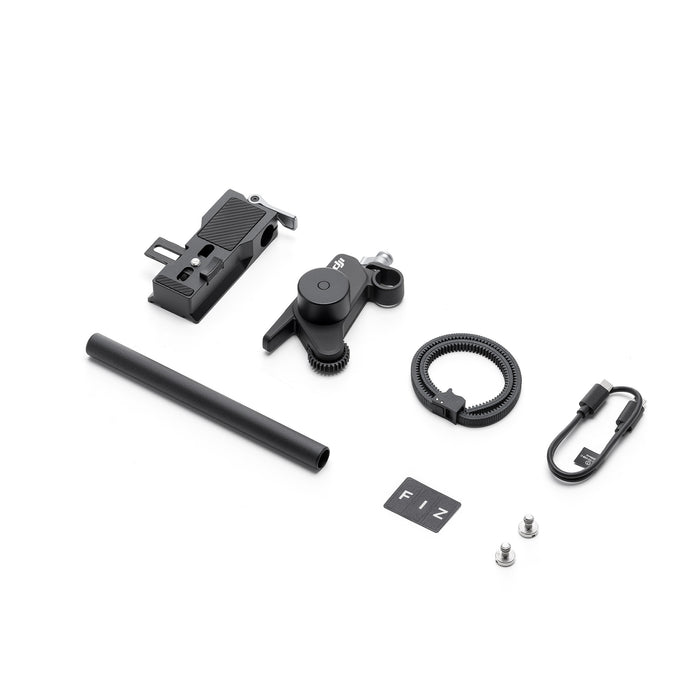

In the Box:

• Focus Pro Motor × 1
• Motor Rod Mount Kit × 1
• Focus Gear Strip × 1
• Multi-Camera Control Cable (USB-C, 30 cm) × 1
• FIZ Sticker × 1‌
• 15mm Rod × 1
• 10mm 1/4"-20 Screw × 2

Specifications:

• 2.4GHz Transmitter Power (EIRP): ‌< 20 dBm (CE/SRRC/MIC), < 26 dBm (FCC)
• 2.4GHz Transmission Distance: 160 m/100 m
• Dimensions: 100×61×34 mm (L×W×H)
• Weight: 123 g
• Rod Diameter: 15 mm
• Output Gear Teeth: 30
• Output Gear Module: 0.8

Compatibility:

• DJI RS 4 Pro
• DJI RS 4
• DJI RS 3 Pro
• DJI RS 3
• DJI Focus Pro Grip
• DJI Focus Pro Hand Unit
• DJI Ronin 4D Flex
