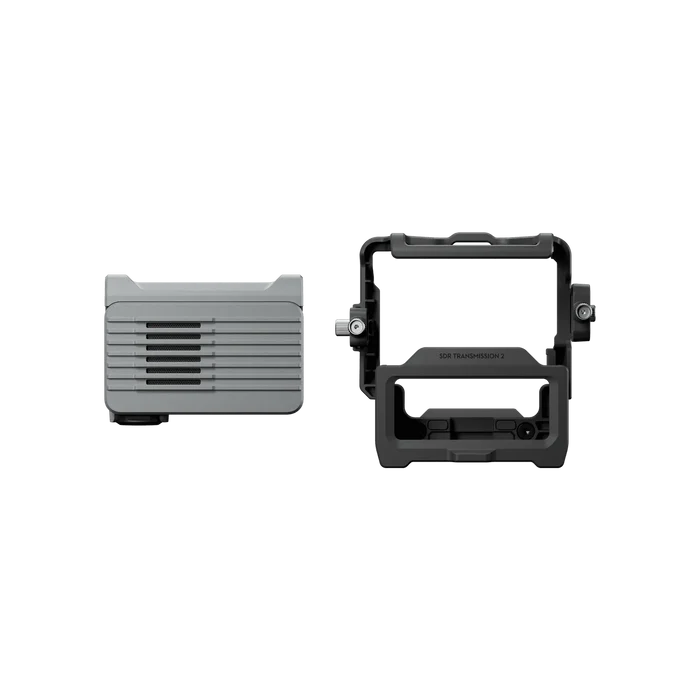

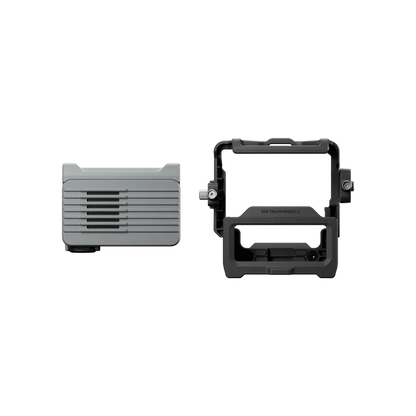

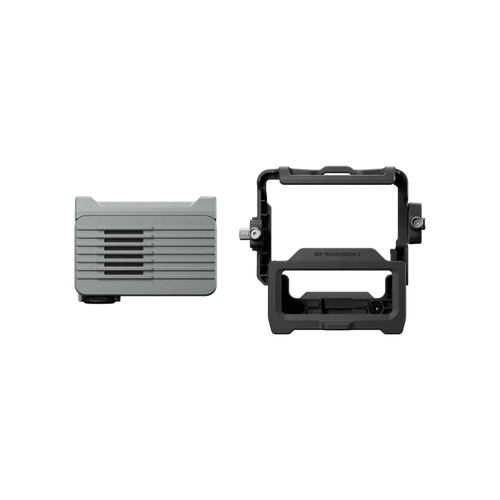

DJI SDR Transmission 2 Expansion Accessory Kit

The DJI SDR Transmission 2 Expansion Accessory Kit extends professional broadcast capabilities with dedicated connectors for SDI, HDMI, and USB-C signals. The included expansion plate and cold shoe adapter integrate seamlessly with cinema workflows, enabling full metadata transmission for colour grading, focus data, and timecode synchronization across connected devices. Essential for productions requiring multi-format I/O and real-time monitoring integration.

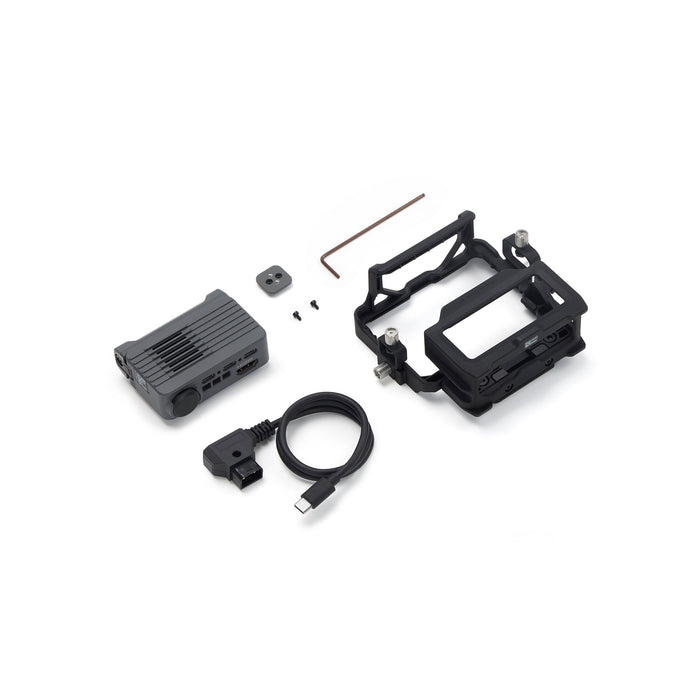

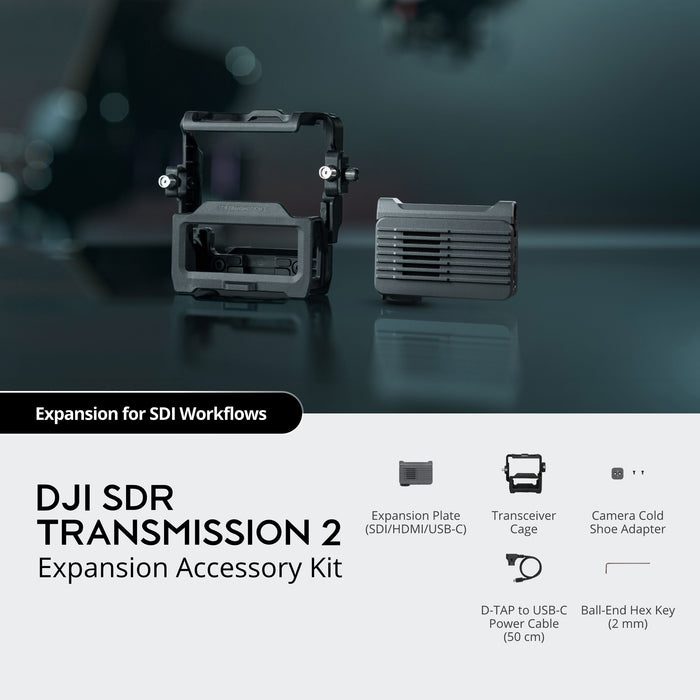

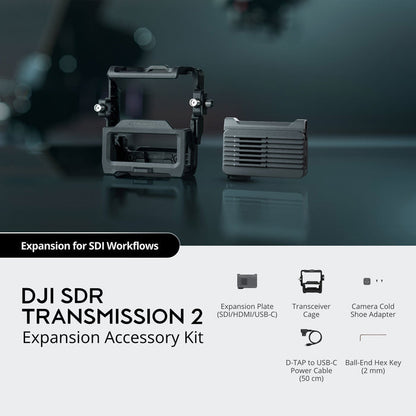

In the Box

• D-TAP to USB-C Power Cable (50 cm) x 1

• Ball-End Hex Key (2 mm) x 1
• DJI SDR Transmission 2 Transceiver Cage x 1
• DJI SDR Transmission 2 Expansion Plate (SDI/HDMI/USB-C) x1
• DJI SDR Transmission 2 Camera Cold Shoe Adapter x 1

Specifications

• Expansion Plate
  • Weight: Approx. 105 g
  • Dimensions: 76×54×25 mm (L×W×H, excluding Cold Shoe Adapter)
  • Ports:
    • HDMI: Input/output
    • USB-C (Right): Power supply and DJI RS 5 connection
    • USB-C (Bottom): Power supply, camera control (photo capture and recording start/stop), and connection to DJI Ronin series devices other than DJI RS 5
    • SDI: Input/output
  • Power Supply:
    • USB-C Power Supply Type 1: 15 V/9 V, 3 A (PD protocol)
    • USB-C Power Supply Type 2: 6.8-17.5 V DC
  • Operating Temperature:,-10° to 40° C (14° to 104° F)
• Transceiver Cage
  • Weight: Approx. 91 g
  • Dimensions: 124×110×49 mm (L×W×H)
  • Mounting:
    • NATO port
    • 1/4″-20 screw hole × 2
    • 3/8″-16 screw hole
    • HDMI cable clamp
    • USB-C cable clamp
  • Operating Temperature: -10° to 40° C (14° to 104° F)

Compatibility

• DJI SDR Transmission 2
